GEARBOX GUIDE

:: APEX > Application > GEARBOX GUIDE

Application

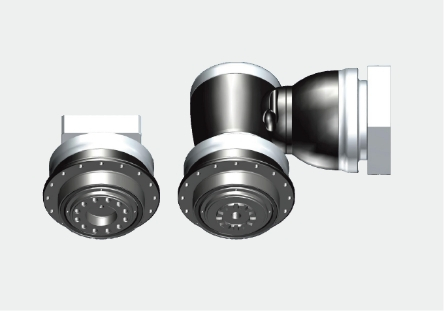

Model

AP / APK / APC / APCK

Ratio

4 ~ 5,500

Best Backlash

≤ 1 arcmin

Main Feature

  • Extra High Torque
  • High Precision
  • High Torsional Rigidity
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Standard Flange or Curvic Output

Application

  • Measurement Equipment
  • Robots
  • Delta Robots
  • The 7th Axis of Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

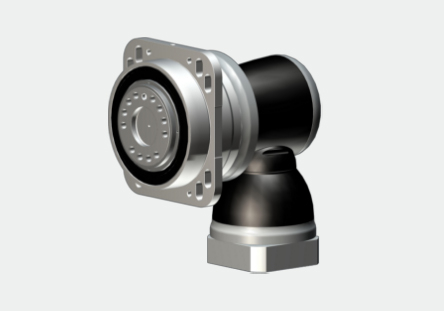

Model

AH / AHK / AFH / AFHK

Ratio

3 ~ 10,000

Best Backlash

≤ 1 arcmin

Main Feature

  • High Torque
  • High Precision
  • High Torsional Rigidity
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Various Shaft or Flange Output Interfaces

Application

  • Measurement Equipment
  • Robots
  • Delta Robots
  • The 7th Axis of Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

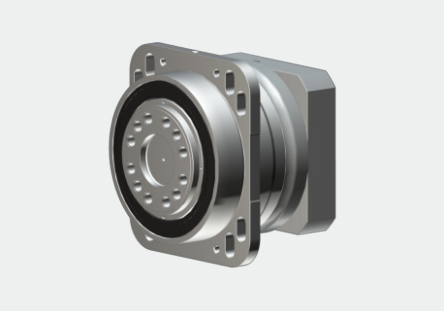

Model

MGH / MGHK / MGHC / MGHCK

Ratio

4 ~ 5,500

Best Backlash

≤ 3 arcmin

Main Feature

  • Enhanced Axial and Radial Load
  • Easy Installation and Adjustment
  • Extra High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Standard Flange or Curvic Output

Application

  • Optimized for Rack and Pinion Application
  • Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

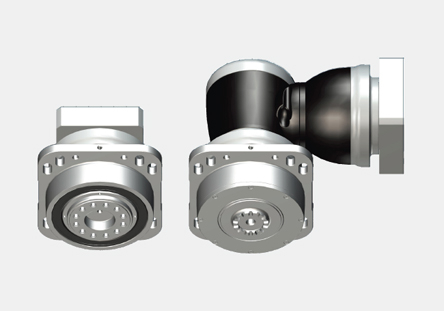

Model

MG / MGK

Ratio

4 ~ 10,000

Best Backlash

≤ 3 arcmin

Main Feature

  • Enhanced Axial and Radial Load
  • Easy Installation and Adjustment
  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series

Application

  • Enhanced Axial and Radial Load
  • Easy Installation and Adjustment
  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series

Model

MGOH / MGOHK / MGOHC / MGOHCK

Ratio

4 ~ 5,500

Best Backlash

≤ 3 arcmin

Main Feature

  • Enhanced Axial and Radial Load
  • Enlarged Holes on Flange for Easy Installation and Adjustment
  • Extra High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series
  • Standard Flange or Curvic Output

Application

  • Optimized for Rack and Pinion Application
  • Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

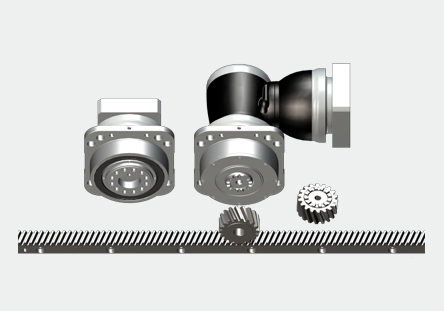

Model

MGO / MGOK

Ratio

4 ~ 10,000

Best Backlash

≤ 3 arcmin

Main Feature

  • Enhanced Axial and Radial Load
  • Enlarged Holes on Flange for Easy Installation and Adjustment
  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series

Application

  • Optimized for Rack and Pinion Application
  • Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

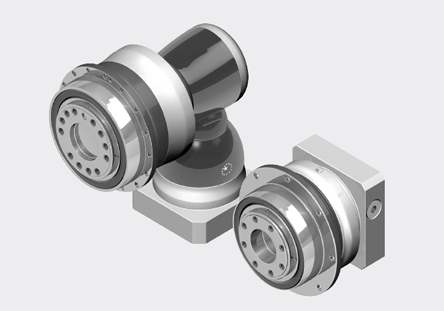

Model

MD / MDK / MF / MFK

Ratio

3 ~ 10,000

Best Backlash

≤ 3 arcmin

Main Feature

  • High Torque
  • High Torsional Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life
  • High Efficiency / Optimized Inertia Moment
  • Identical Input-Output Rotating Direction with Hypoid Right-Angle K-Series

Application

  • Robots
  • High-End CNC Machine Tools
  • Heavy Duty Automation Facility

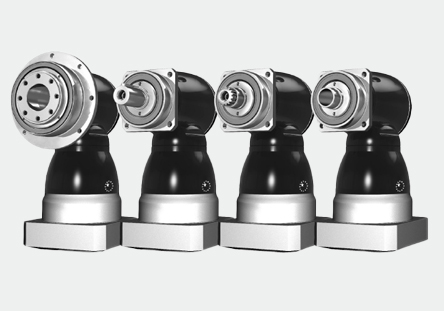

Model

KH / KF

Ratio

1 ~ 100

Best Backlash

≤ 3 arcmin

Main Feature

  • High-End Hypoid Right-Angle Gearbox
  • Identical Input-Output Rotating Direction
  • High Precision
  • High Rigidity
  • Long Service Life
  • Various Shaft or Flange Output Interfaces

Application

  • High Ratio Density
  • High Power Density
  • General Automation Facilitiy
  • CNC Machine Tools
  • Robots

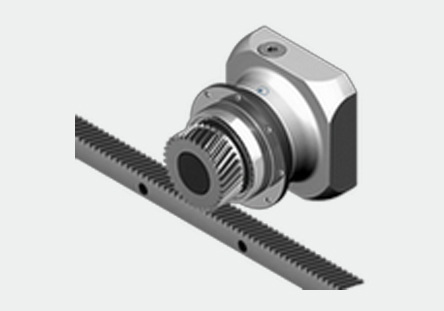

Model

L

Ratio

5, 7

Best Backlash

≤ 3 arcmin

Main Feature

  • With integrated Pinion
  • High Rigidity
  • High Precision
  • Long-Term Persistence of Low Backlash
  • Long Service Life

Application

  • Optimized for Rack and Pinion Application
  • Laser Cutting / Plasma Cutting Machine

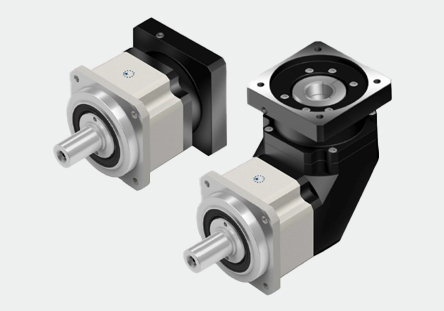

Model

AB / ABR / AF / AFR / AFX / AFXR / AD / ADR

Ratio

3 ~ 200

Best Backlash

≤ 3 arcmin

Main Feature

  • Stainless Construction
  • Low Backlash
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Various Shaft or Flange Output
  • Bevel-Gear Right-Angle Design

Application

  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • CNC Machine Tools
  • Robots
  • Washdown / Outdoor

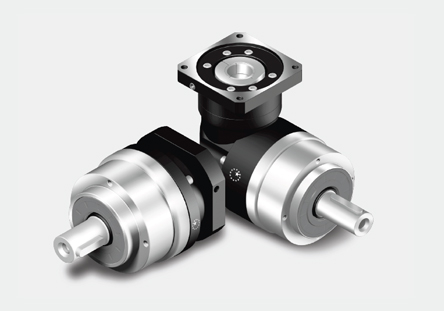

Model

AE / AER

Ratio

3 ~ 100

Best Backlash

≤ 5 arcmin

Main Feature

  • Stainless Construction
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Bevel-Gear Right-Angle Design

Application

  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • Washdown / Outdoor

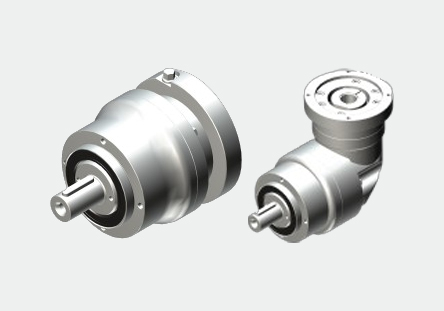

Model

AES / AERS

Ratio

3 ~ 200

Best Backlash

≤ 5 arcmin

Main Feature

  • Full-Stainless Construction
  • Maintenance Free
  • Low Noise
  • Optimized Inertia Moment
  • Long Service Life
  • Bevel-Gear Right-Angle Design

Application

  • Clean Room
  • Electrics Industry
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • Washdown / Outdoor

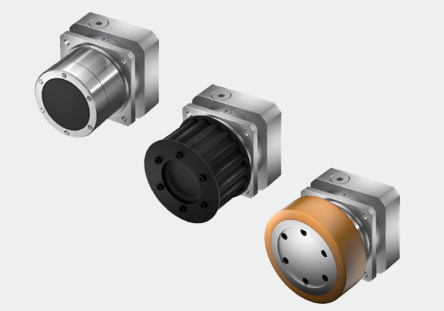

Model

GL

Ratio

2 ~ 90

Best Backlash

≤ 6 arcmin

Main Feature

  • Rotating Housing Design
  • Enhanced Axial and Radial Load
  • High Rigidity

Application

  • Optimized for Pulley Drive and AGV Wheel Drive

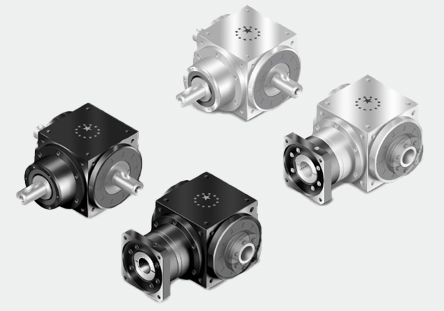

Model

AT / ATB

Ratio

1 ~ 500

Best Backlash

≤ 3 arcmin

Main Feature

  • Stainless Construction (optional)
  • Bevel-Gear Right-Angle Design
  • High Rigidity
  • High Precision Installation

Application

  • Electrics Industry / Clean Room
  • Food / Pharmaceutics Industry
  • General Automation Facility
  • CNC Machine Tools
  • Washdown / Outdoor

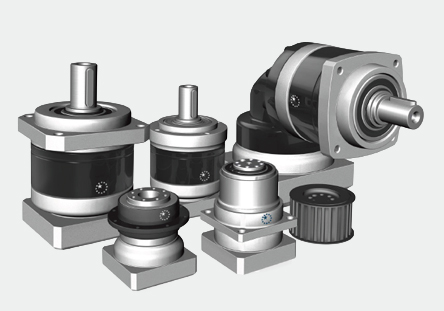

Model

PAII / PAIIRI / PEII / PEIIRI / PGII / PGIIRI / PSII / PSIIRI / PD / PDRI / PL / PLRI / PFII

Ratio

3 ~ 1,000

Best Backlash

≤ 6 arcmin

Main Feature

  • Economic Design
  • High Efficiency / Optimized Inertia Moment
  • Minimized Size and Weight
  • Limited Temperature Rise
  • Long Service Life
  • Bevel-Gear Right-Angle Design

Application

  • General Automation Facility
  • Robots
  • More suitable for Continuous Operation
