FEATURE
- Stainless Construction
- Low Backlash
- Maintenance Free
- Low Noise
- Optimized Inertia Moment
- Long Service Life
- Various Shaft or Flange Output
- Bevel-Gear Right-Angle Design

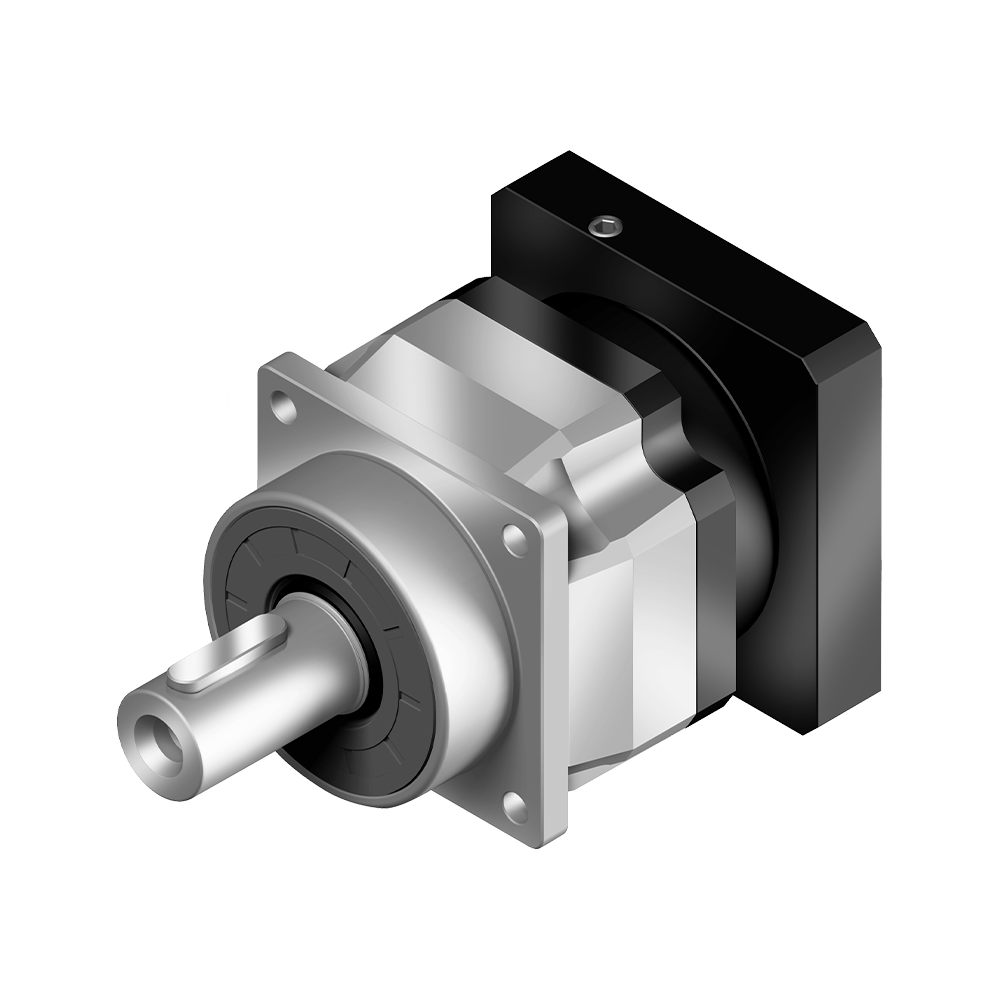

OVERVIEW
Output torque
- AF Series T2N : 14 Nm - 2000 Nm
- AFR Series T2N : 9 Nm - 2000 Nm
Ratio
- AF Series : 3 ~ 100
- AFR Series : 3 ~ 200
*Only ADR047 offers 20 option
Low recoil
- AF Series : ≦1 arcmin ~ ≦7 arcmin
- AFR Series : ≦2 arcmin ~ ≦9 arcmin
High efficiency
- AF Series : ≧ 97% / ≧ 94%
- AFR Series : ≧ 95% / ≧ 92%
Size
- AF042 ~ AF220
- AFR042 ~ AFR220
